IonGen System replacement parts

Aquascape offers replacement parts for the IonGen System, including probes, control panels, flow chambers, transformers, and probe holders.

Replacement parts vary depending on the IonGen generation and country of use. Before ordering, identify your IonGen System generation and confirm whether you have a U.S. or Canadian model.

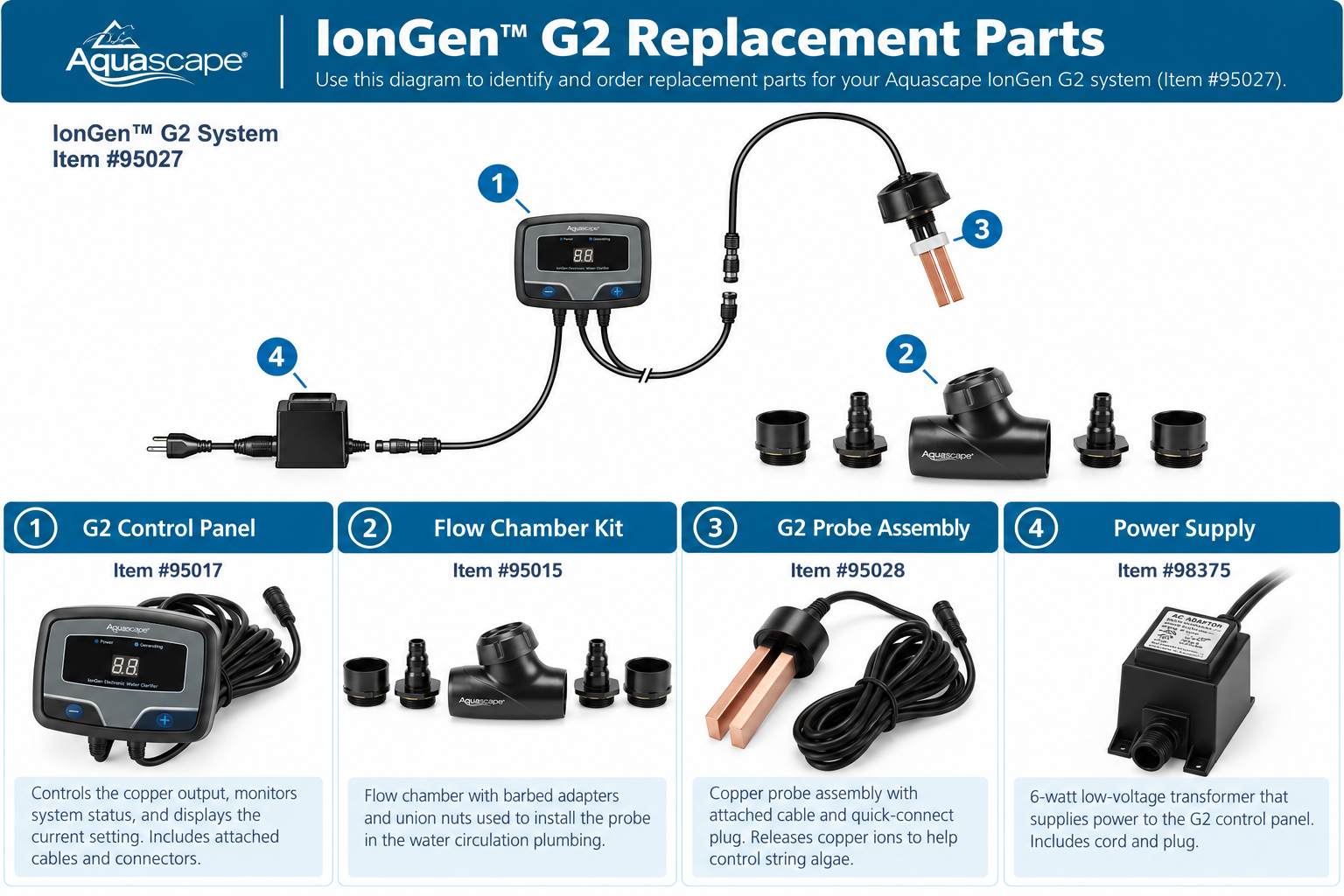

IonGen System G2 replacement parts — United States

System model: IonGen System G2 — U.S., Item #95027

The following replacement parts are compatible with the U.S. IonGen System G2.

• IonGen G2 Probe (EPA Registered) — Item #95028
  • Replacement ion-producing probe for the U.S. IonGen System G2.
  • Designed for the second-generation IonGen flow chamber.
  • Includes a 5 ft (1.52 m) quick-connect cable.
  • EPA-registered for use in the United States.
• IonGen G2 Control Panel with 12-Volt Transformer — Item #95017
  • Replacement electronic control panel supplied with a 12 V transformer.
  • Controls the electrical output to the IonGen probe.
• IonGen G2 Flow Chamber Kit — Item #95015
  • Replacement flow chamber for the IonGen System G2.
  • Houses the G2 probe within the pond's circulating water.
• 6-Watt Low Voltage Quick-Connect Transformer — Item #98375
  • Replacement 6 W, 12 V transformer.
  • Supplies low-voltage power to the IonGen G2 control panel.
• IonGen G2 Probe Holder — Item #95077
  • Allows the G2 probe to be installed without a flow chamber.
  • Can be used in pond skimmers and Pondless Waterfall Vaults.
  • Attaches to pipes or check valves measuring 1–4 in. (25–102 mm) in diameter.

IonGen System G2 replacement parts — Canada

System model: IonGen System G2 — Canada, Item #95012

The following replacement parts are compatible with the Canadian IonGen System G2.

• IonGen G2 Probe — Canada, Item #95016
  • Replacement ion-producing probe for the Canadian IonGen System G2.
  • Designed for use with the second-generation IonGen System.
  • Uses a different replacement item number from the U.S. EPA-registered probe.
• IonGen G2 Control Panel with 12-Volt Transformer — Item #95017
  • Replacement electronic control panel supplied with a 12 V transformer.
  • Listed for both Canadian and U.S. IonGen G2 systems.
• IonGen G2 Flow Chamber Kit — Item #95015
  • Replacement flow chamber for the IonGen System G2.
  • Listed for both Canadian and U.S. systems.
• 6-Watt Low Voltage Quick-Connect Transformer — Item #98375
  • Replacement 6 W, 12 V transformer.
  • Listed for both Canadian and U.S. IonGen G2 systems.
• IonGen G2 Probe Holder — Item #95077
  • Allows the G2 probe to be positioned without using a flow chamber.
  • Suitable for pond skimmers and Pondless Waterfall Vaults.
  • Attaches to pipes or check valves measuring 1–4 in. (25–102 mm) in diameter.
  • Listed for both Canadian and U.S. IonGen G2 systems.

Important: The Canadian IonGen G2 replacement probe is Item #95016, while the U.S. EPA-registered IonGen G2 replacement probe is Item #95028. Select the probe specified for your country's system.

IonGen System G1.5 replacement parts

The IonGen System G1.5 uses a different probe configuration from the G2 system.

• IonGen G1.5 Replacement Probe (EPA Registered) — Item #95075
  • Designed for IonGen G1.5 systems using the first-generation PVC tee-style flow chamber and second-generation control panel.
  • Includes a 5 ft (1.52 m) quick-connect cable.
  • Allows tool-free probe replacement.

Important: The G1.5 replacement probe is not the same as the G2 replacement probe. Match the probe to the existing flow chamber and control panel configuration.

IonGen System G1 replacement parts

The original IonGen G1 system uses an earlier probe and connection arrangement.

The G1 and G1.5 configurations use a connection that attaches directly at the probe, while the G2 uses a probe with an attached cable and a quick-connect fitting at the opposite end.

Replacement components for original G1 systems must be identified using the system's original configuration and applicable parts documentation.

Do not assume that G1, G1.5, and G2 probes or controllers are interchangeable.

How do I identify the correct IonGen replacement part?

Before purchasing a replacement part:

1. Identify your IonGen generation. Determine whether your system is G1, G1.5, or G2.
2. Confirm your country. U.S. and Canadian G2 systems use different replacement probe item numbers.
3. Inspect the probe connection. Check whether the electrical cable connects directly to the probe or whether the cable is permanently attached to the probe with a quick-connect fitting at the opposite end.
4. Verify the part number. Match the replacement component to your system generation and country before ordering.

If you are unsure which generation you own, refer to the article How do I know which generation of IonGen I have?

For assistance identifying an older IonGen component or confirming replacement-part compatibility, submit a request through the Aquascape Customer Care contact form.
